2MP 10x Zoom AI ISP Basat Globali Shutter Network u MIPI Dual Output Kamera Modulu
|
Mudell |
SG-ZCM2010NMIL-G |
||||
|
Sensor |
Sensor tal-Immaġni |
1/2.6” Global Shutter CMOS |
|||
|
Pixels effettivi |
Appross. 2.3 Megapixel |
||||
|
Lenti |
Tul Fokali |
4.8mm ~ 48mm, 10x Zoom ottiku |
|||
|
Apertura |
F1.7~F3.2 |
||||
|
Field of View |
H: 61.93°~6.87°, V: 37.30°~3.87°, D: 69.09°~7.88° |
||||
|
Distanza Focus Agħlaq |
1m~5m (Wide~Tele) |
||||
|
Zoom Veloċità |
< 4s (Wide~Tele) |
||||
|
DORI Distanza (Bniedem) |
Issib |
Osserva |
Agħraf |
Identifika |
|
|
640m |
254m |
128m |
64m |
||
|
Video |
Kompressjoni |
H.265/H.264B/H.264H/H.264M/MJPEG |
|||
|
Kapaċità ta' Streaming |
3 Streams |
||||
|
Riżoluzzjoni |
Stream prinċipali: 50/60fps@(1920×1080, 1280×720) Sub-Stream1: 50/60fps@(704×576, 352×288, 352×240) Sub-Stream1: 50/60fps@(1280×720,704×576, 704×480) |
||||
|
Video Bit Rata |
32kbps ~ 16Mbps |
||||
|
MIPI Vidjo |
50Hz: 50fps@2MP(1920×1080) 60Hz: 60fps@2MP(1920×1080) |
||||
|
Netwerk |
Protokoll tan-Netwerk |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour |
|||
|
API |
ONVIF, HTTP API, SDK |
||||
|
Web Browser |
IE, Edge, Firefox, Chrome |
||||
|
Utent |
Sa 20 utent, 2 livell: Amministratur, Utent |
||||
|
Ħażna |
Mikro SD/SDHC/SDXC card (Sa 1TB) ħażna tarf, FTP, NAS |
||||
|
Multicast |
Appoġġ |
||||
|
Firmware Upgrade |
Jistgħu jaġġornaw il-firmware biss permezz tal-port tan-Netwerk. |
||||
|
Avvenimenti Ġenerali |
Mozzjoni, Tamper, SD Card, Netwerk |
||||
|
IVS |
Tripwire, Sejbien Cross Fence, Intrużjoni, Oġġett Abbandunat, Mgħaġġla-Niċċaqilqu, Sejbien ta 'Parkeġġ, Stima ta' Ġabra ta' Folla, Oġġett Nieqes, Sejbien ta 'Lotering. |
||||
|
Distinzjoni fil-mira |
Bniedem/Vettura |
||||
|
Proporzjon S/N |
≥55dB |
||||
|
Illuminazzjoni Minima |
Kulur: 0.01Lux/F1.7; B/W: 0.001Lux/F1.7 |
||||
|
Tnaqqis tal-Ħoss |
Tnaqqis tal-Ħoss 2D/3D/AI |
||||
|
Modalità ta' Espożizzjoni |
Awtomatiku, Prijorità tal-Apertura, Prijorità tax-Shutter, Prijorità tal-Kwabbi, Manwal |
||||
|
Kumpens ta' Espożizzjoni |
Appoġġ |
||||
|
Veloċità Shutter |
1/1 ~ 1/30000s |
||||
|
AGC |
Appoġġ |
||||
|
BLC |
Appoġġ |
||||
|
HLC |
Appoġġ |
||||
|
WDR |
Appoġġ |
||||
|
Bilanċ abjad |
Awtomatiku, Manwal, Ġewwa, Barra, ATW, Fanal tas-sodju, Fanal tat-triq, Naturali, Imbotta waħda |
||||
|
Jum/Lejl |
ICR (Awtomatiku/Manwal) |
||||
|
Modalità Focus |
Auto, Manwal, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF |
||||
|
Defog Elettroniku |
Appoġġ |
||||
|
Tnaqqis ta 'Heat Haze |
Appoġġ |
||||
|
Flip |
Appoġġ |
||||
|
EIS |
Appoġġ |
||||
|
Zoom Diġitali |
16x |
||||
|
Kontroll Estern |
TTL |
||||
|
Interface |
Port Ethernet 4pin, 6pin Power & port UART, 30pin MIPI |
||||
|
Protokoll ta' Komunikazzjoni |
SONY VISCA, Pelco D/P |
||||
|
Kundizzjonijiet Operattivi |
-30°C~+60°C/20% sa 80%RH |
||||
|
Kundizzjonijiet tal-Ħażna |
-40°C~+70°C/20% sa 95%RH |
||||
|
Provvista tal-Enerġija |
DC 12V |
||||
|
Konsum tal-Enerġija |
TBD |
||||
|

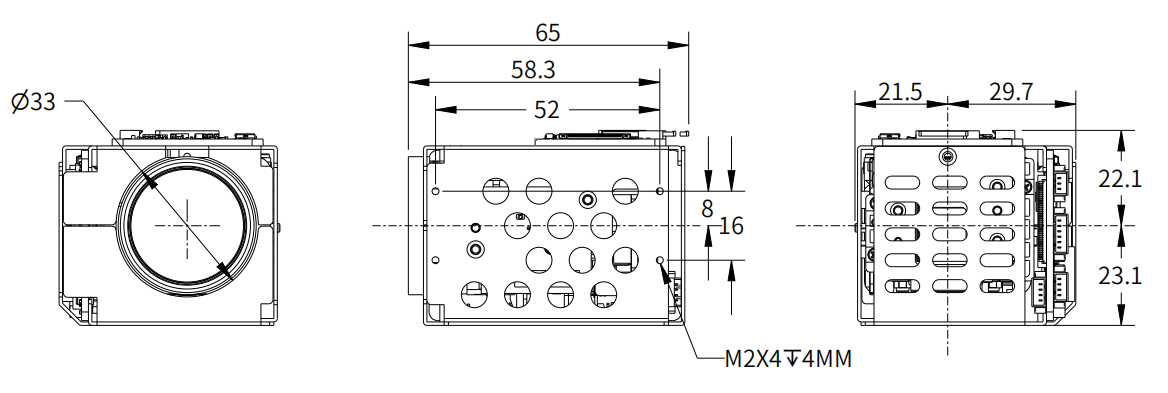

Dimensjonijiet (L * W * H) |
65mm * 45mm * 52mm |
||||
|
Piż |
152g |
||||
