1280x1024 Modulu tal-Kamera tan-Netwerk Termali b'Lenti Atermalizzata ta' 55mm (35mm)
|
Mudell |
SG-TCM12N2-55 |
SG-TCM12N2-35 |
|
|
Sensor |
Sensor tal-Immaġni |
Mikrobolometru VOx mhux imkessaħ |
|
|
Riżoluzzjoni |
1280×1024 |
||
|
Frame Rata |
50Hz |
||
|
Pixel Pitch |
12μm |
||
|
Medda Spettrali |
8 ~ 14μm |
||
|
NETD |
≤35mK@25°C, F#1.0 |
||
|
Lenti |
Kisi |
DLC |
|
|
Tul Fokali |
55mm |
35mm |
|
|
Iffoka |
Manwal |
Manwal |
|
|
Zoom Diġitali |
8x |
8x |
|
|
Valur F |
F1.0 |
F1.0 |
|
|
FOV |
15.90°×12.75° |
24.75°×19.91° |
|
|
Video |
Kompressjoni |
H.265/H.264/H.264H/H.264B/MJPEG |
|
|
Kompressjoni Awdjo |
AAC / MP2L2 |
||
|
Snapshot |
JPEG |
||
|
Riżoluzzjoni |
Fluss Prinċipali: 50fps@(1280×1024, 1280×720, 704×576, 704×480) |
||
|
Video Bit Rata |
4kbps ~ 40Mbps |
||
|
Netwerk |
Protokoll tan-Netwerk |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour |
|
|
API |
ONVIF, HTTP API, SDK, GB28181 |
||
|
Sigurtà tan-Netwerk |
Awtentikazzjoni tal-Utent, Iffiltrar IP/MAC, Encryption HTTPS, Kontroll tal-Aċċess għan-Netwerk IEEE 802.1X |
||
|
Web Browser |
IE, Edge, Firefox, Chrome |
||
|
Utent |
Sa 20 utent, 2 livell: Amministratur, Utent |
||
|
Ħażna |
Mikro SD/SDHC/SDXC card (Sa 1TB) ħażna tarf, FTP, NAS |
||
|
Multicast |
Appoġġ |
||
|
Intelliġenza |
Protezzjoni tal-Perimetru |
Tripwire, Sejbien Cross Fence, Intrużjoni |
|
|
Analiżi tal-Imġieba |
Oġġett Abbandunat, Tneħħija ta' Oġġetti, Mgħaġġla-Niċċaqilqu, Sejbien ta' Folla, Sejbien ta' ġirja, Sejbien ta' parkeġġ |
||
|
Avvenimenti |
Sejbien tal-Moviment, Oklużjoni tal-Vidjo, Bidla fix-Xena, Sejbien tal-Awdjo, Netwerk Skonnettjat, Kunflitt IP, Aċċess Illegali, Anomalja tal-Ħażna |
||
|
Sejbien tan-Nar |
Appoġġ |
||
|
Interface |
Ethernet |
4PIN port Ethernet, 10M/100M awto-adattament |
|
|
Allarm In/Out |
1/1 |
||
|
Awdjo In/Out |
1/1 |
||
|
Interface tal-Kontroll |
1x TTL 3.3V (protokoll VISCA), 1x RS485 (protokoll Pelco) (TTL 3.3V mhux obbligatorju) |
||
|
Output tal-vidjo |
Netwerk |
||
|
Psewdo Kulur |
Abjad sħun, iswed sħun, fużjoni, ħadid aħmar, eċċ 20 għażla |
||
|
Modalità FFC |
Auto / Manwal |
||
|
Iffissar tal-Immaġni |
Luminożità, Kuntrast, Sharpness, u Tnaqqis tal-Ħoss Temporali |
||
|
EIS |
Appoġġ |
||
|
OSD |
Appoġġ |
||
|
Flip |
Appoġġ |
||
|
Mera |
Appoġġ |
||
|
Provvista tal-Enerġija |
DC 12V, 1A |
||
|
Konsum tal-Enerġija |
≤3.8W |
||
|
Kundizzjonijiet Operattivi |
-30°C~+60°C/20% sa 80%RH |
||
|
Kundizzjonijiet tal-Ħżin |
-40°C~+70°C/20% sa 95%RH |
||
|
L-1 Livell ta' Protezzjoni tal-Lenti |
IP67 |
||
|

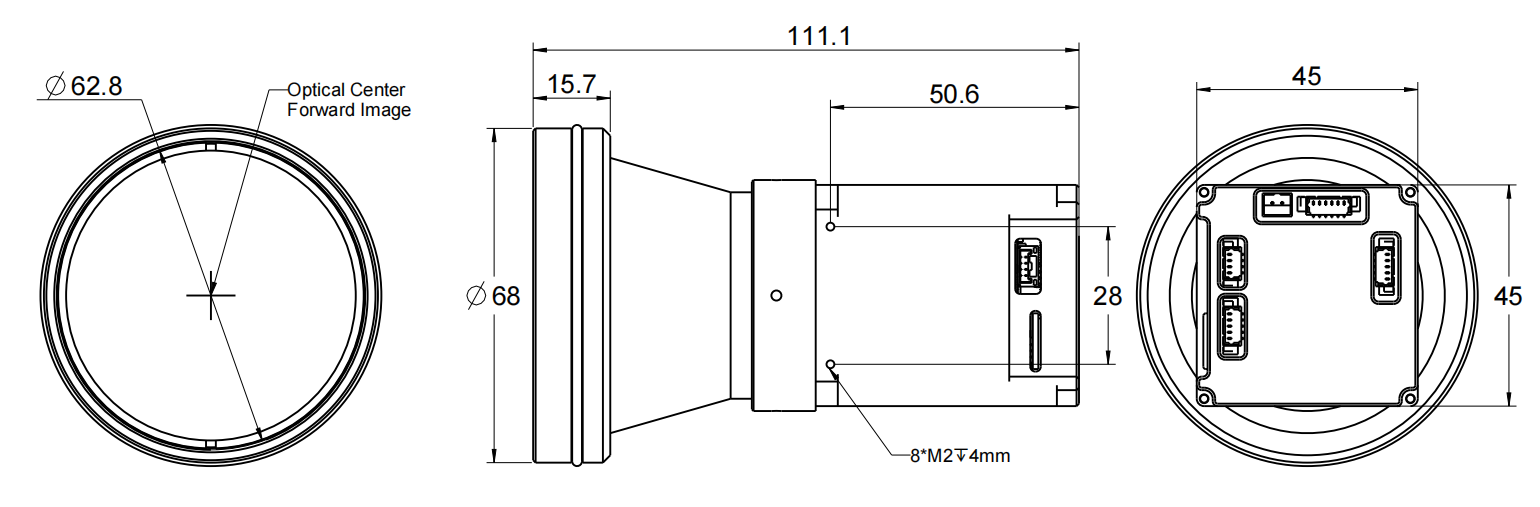

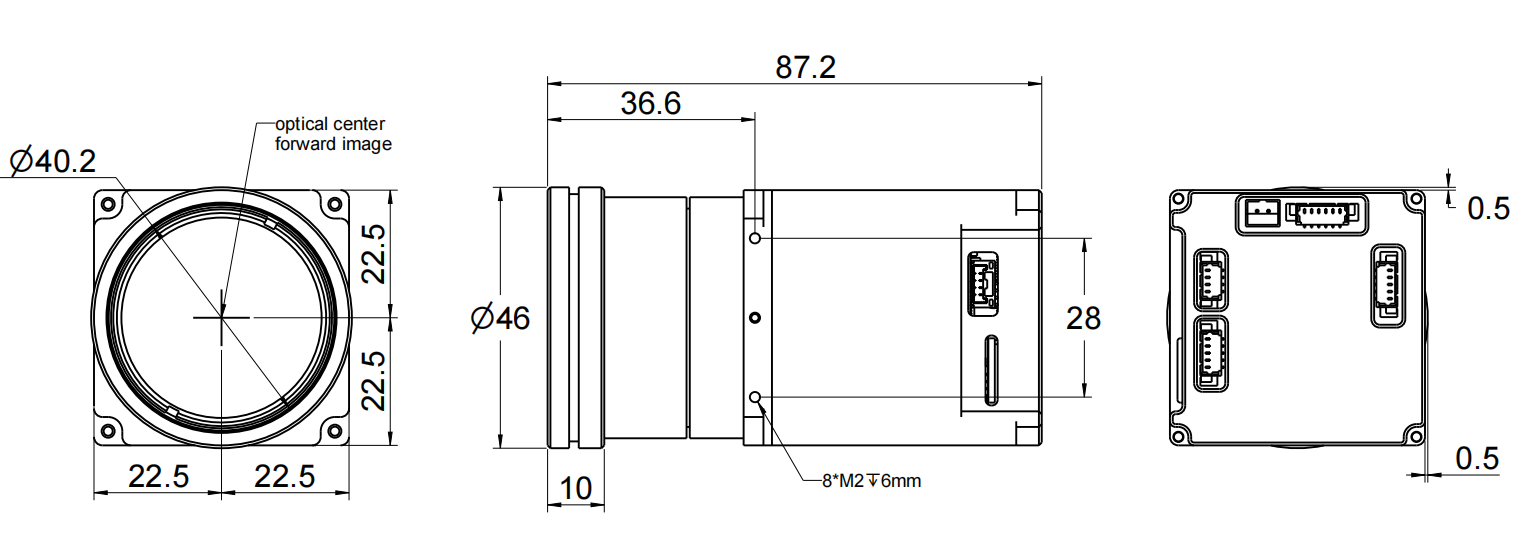

Dimensjonijiet (L * W * H) |
Φ68 * 111.1mm |
87.2 * 46 * 46mm |
|
|
Piż |
Appross. 430g |
Appross. 224g |
|
Distanza DRI
Mira: Id-daqs tal-bniedem huwa 1.8m × 0.5m (id-daqs kritiku huwa 0.75m), id-daqs tal-vettura huwa 1.4m × 4.0m (id-daqs kritiku huwa 2.3m); Id-daqs tan-nar huwa 0.13m × 0.13m (id-daqs kritiku huwa 0.13m).
Id-distanzi ta’ skoperta, rikonoxximent u identifikazzjoni tal-mira huma kkalkulati skont il-Kriterji ta’ Johnson.
Id-distanzi rakkomandati ta' Sejbien, Rikonoxximent u Identifikazzjoni huma kif ġej:
|
Lenti |
Detect |
Rjagħrfu |
Identifikay |
||||||
|
Vettura |
Bniedem |
Nar |
Vettura |
Bniedem |
Nar |
Vettura |
Bniedem |
Nar |
|
|
35mm |
4472m (14672ft) |
1458m (4783ft) |
253m (830 pied) |
1118m (3668ft) |
365m (1198ft) |
63m (207 pied) |
559m (1834ft) |
182m (597ft) |
32m (105 pied) |
|
55mm |
7028m (23058ft) |
2292m (7520ft) |
397m (1302 pied) |
1757m (5764ft) |
573m (1880ft) |
99m (325 pied) |
878m (2281ft) |
286m (938ft) |
50m (164 pied) |
