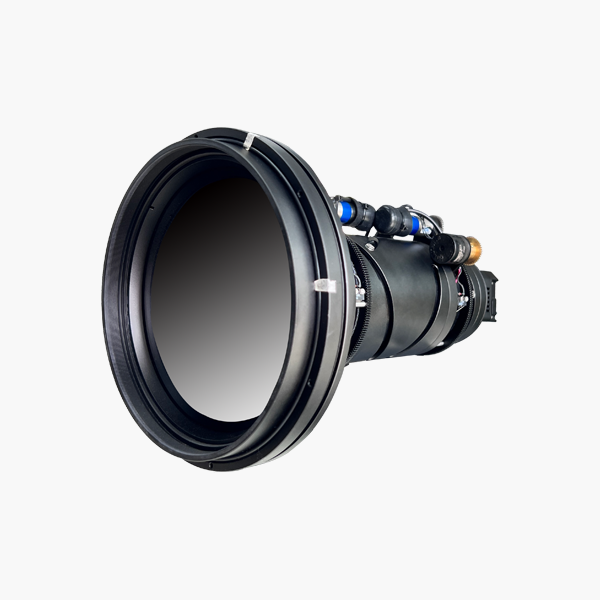

1280x1024 Modulu tal-Kamera tan-Netwerk Termali b'Lenti Motorizzata ta' 25 ~ 225mm (30 ~ 150mm)

Mudell

SG-TCM12N2-M25225

SG-TCM12N2-M30150

Sensor

Sensor tal-Immaġni

Mikrobolometru VOx mhux imkessaħ

Riżoluzzjoni

1280×1024

Frame Rata

50Hz

Pixel Pitch

12μm

Medda Spettrali

8 ~ 14μm

NETD

≤35mK@25°C, F#1.0

Lenti

Kisi

DLC

Tul Fokali

25 ~ 225mm

30 ~ 150mm

Tip ta' Lenti

Motorizzat

Motorizzat

Zoom ottiku

9x

5x

Zoom Diġitali

8x

8x

Valur F

F1.0 ~ F1.5

F1.0~F1.2

FOV

34.15°×27.61°~3.91°×3.13°

28.72°×23.15°~5.86°×4.69°

Video

Kompressjoni

H.265/H.264/H.264H/H.264B/MJPEG

Kompressjoni Awdjo

AAC / MP2L2

Snapshot

JPEG

Riżoluzzjoni

Fluss Prinċipali: 50fps@(1280×1024, 1280×720, 704×576, 704×480)
Sub-Stream1/2: 50fps@(704×576, 704×480, 352×288, 352×240)

Video Bit Rata

4kbps ~ 40Mbps

Netwerk

Protokoll tan-Netwerk

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Sigurtà tan-Netwerk

Awtentikazzjoni tal-Utent, Iffiltrar IP/MAC, Encryption HTTPS, Kontroll tal-Aċċess għan-Netwerk IEEE 802.1X

Web Browser

IE, Edge, Firefox, Chrome

Utent

Sa 20 utent, 2 livell: Amministratur, Utent

Ħażna

Mikro SD/SDHC/SDXC card (Sa 1TB) ħażna tarf, FTP, NAS

Multicast

Appoġġ

Intelliġenza

Protezzjoni tal-Perimetru

Tripwire, Sejbien Cross Fence, Intrużjoni

Analiżi tal-Imġieba

Oġġett Abbandunat, Tneħħija ta' Oġġetti, Mgħaġġla-Niċċaqilqu, Sejbien ta' Folla, Sejbien ta' ġirja, Sejbien ta' parkeġġ

Avvenimenti

Sejbien tal-Moviment, Oklużjoni tal-Vidjo, Bidla fix-Xena, Sejbien tal-Awdjo, Netwerk Skonnettjat, Kunflitt IP, Aċċess Illegali, Anomalja tal-Ħażna

Sejbien tan-Nar

Appoġġ

Interface

Ethernet

4PIN port Ethernet, 10M/100M awto-adattament

Allarm In/Out

1/1

Awdjo In/Out

1/1

Interface tal-Kontroll

1x TTL 3.3V (protokoll VISCA),

1x RS485 (protokoll Pelco) (TTL 3.3V mhux obbligatorju)

Output tal-vidjo

Netwerk

Psewdo Kulur

Abjad sħun, iswed sħun, fużjoni, ħadid aħmar, eċċ 20 għażla

Modalità Focus

Awtomatiku / Manwal / Imbotta waħda AF

Modalità FFC

Auto / Manwal

Iffissar tal-Immaġni

Luminożità, Kuntrast, Sharpness, u Tnaqqis tal-Ħoss Temporali

EIS

Appoġġ

OSD

Appoġġ

Flip

Appoġġ

Mera

Appoġġ

Provvista tal-Enerġija

DC 12V, 1A

Konsum ta' Enerġija Tipiku

3.8W

L-ogħla Konsum tal-Enerġija

7.5W

7.3W

Kundizzjonijiet Operattivi

-30°C~+60°C/20% sa 80%RH

Kundizzjonijiet tal-Ħżin

-40°C~+70°C/20% sa 95%RH

L-1 Livell ta' Protezzjoni tal-Lenti

IP67

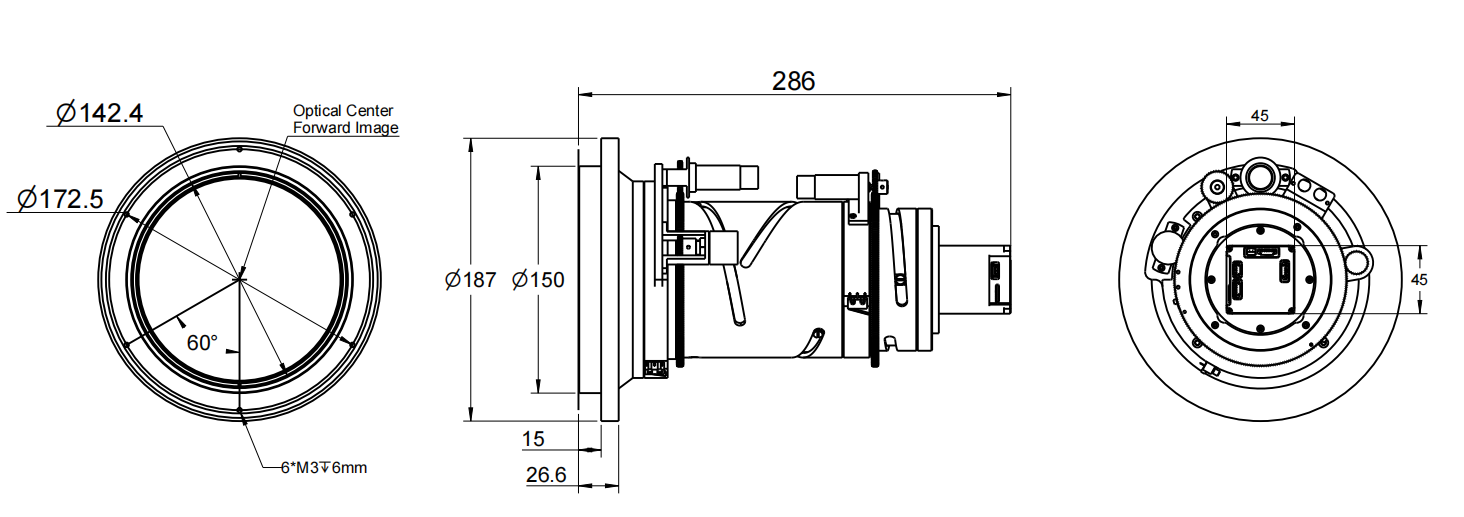

Dimensjonijiet (L*W*H)

Φ195 * 321mm

Φ187*286 (mm)

Piż

Appross. 5kg

Appross. 4.6kg

Lenti

Detect

Rjagħrfu

Identifikay

Vettura

Bniedem

Nar

Vettura

Bniedem

Nar

Vettura

Bniedem

Nar

30mm

3833m (12575ft)

1250m (4101ft)

217m

(712 pied)

958m (3143ft)

313m (1027ft)

54m

(177 pied)

479m (1572ft)

156m (512ft)

27m

(89 pied)

150mm

19167m (62884ft)

6250m (20505ft)

1083m

(3553 pied)

4792m (15722ft)

1563m (5128ft)

271m

(899 pied)

2396m (7861ft)

781m (2,562ft)

135m

(443 pied)

225mm

28750m (94324ft)

9375m (30758ft)

1625m

(5331ft)

7188m (23583ft)

2344m (7690ft)

406m

(1332 pied)

3594m (11791ft)

1172m (3845ft)

203m

(666 pied)
