1280x1024 / 640x512 Netwerk u Modulu tal-Kamera SWIR Dual Output Digital
Speċifikazzjoni
Mudell | SG - SWZ12ND2 - 17510 | SG - SWZ06ND2 - 17510 | |
Senser | Sensor tal-immaġini | 1/2 ″ Sony Ingaas Global Shutter Swir Sensor IMX990 | 1/4 ″ Sony Ingaas Global Shutter Swir Sensor IMX991 |
| Pixel effettivi | Appross. 1.34MP | Appross. 0.34MP | |
| Daqs tal-pixel | 5μm | ||
Lenti | Tul tal-mewġa ta 'rispons | 1000 ~ 1700nm | |
| ICR | Appoġġ 2 Modi: Banda Wide: 1000 ~ 1700NMNarrow Banda: 1450 ~ 1700nm | ||
| Tul fokali | 17mm ~ 510mm, 30x zoom ottiku | ||
| Apertura | F2.8 ~ F5.5 | ||
| Qasam tal-vista | H: 21.3 ° ~ 0.71 °, V: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.47 ° | |
| Distanza ta 'fokus mill-qrib | 1m ~ 10m (wiesgħa ~ tele) | ||
| Veloċità taż-zoom | Appross. 7s (ottiku wiesa '~ tele) | ||
Video | Kompressjoni | H.265 / H.264 / H.264H / MJPEG | |
| Riżoluzzjoni | 25/30/50 / 60fps @ 1280 × 1024 | 25/30 / 50 / 60fps @ 640 × 512 | |
| Rata tal-bit tal-vidjow | 32Kbps ~ 16Mbps | ||
| Awdjo | AAC / MP2L2 | ||
| Vidjow LVDS | 25/30/50 / 60fps @ 2MP (1920 × 1080) | ||
Netwerk | Ħażna | Karta TF (256 GB), FTP, NAS | |
| Protokoll tan-netwerk | Onvif, Http, Https, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Appoġġ | ||
| Upgrade tal-Firmware (LVDs) | Jista 'jaġġorna biss il-firmware permezz tal-port tan-netwerk | ||
| Avvenimenti Ġenerali | Mozzjoni, tbagħbis, karta SD, netwerk | ||
| IVs | Tripwire, sejbien ta 'ċint trasversali, intrużjoni, oġġett abbandunat, malajr - jiċċaqlaq, sejbien ta' parkeġġ, stima ta 'folla, oġġett nieqes, sejbien ta' tlajjar. | ||
| Tnaqqis tal-ħoss | 2d / 3d | ||
| Mod ta 'espożizzjoni | Manwal, Auto, Prijorità tal-Aperture, Prijorità tax-Shutter | ||
| Kumpens għall-esponiment | Appoġġ | ||
| Veloċità tax-shutter | 1/1 ~ 1 / 30000s | ||
| Modalità Fokus | Auto / Manwal / Semi Auto | ||
| Defog elettroniku | Appoġġ | ||
| Tnaqqis taċ-ċpar tas-sħana | Appoġġ | ||
| Flip | Appoġġ | ||
| Eis | Appoġġ | ||
| Zoom diġitali | 16x | ||
| Kontroll estern | TTL | ||
| Interface | 4Pin Port Ethernet, 6Pin Serial & Power Port, 5Pin Audio Port.30pin LVDS | ||
| Protokoll ta 'komunikazzjoni | Sony Visca, Pleco D / P | ||
| Kundizzjonijiet operattivi | - 30 ~ + 60 ° C / 20% ~ 80% RH | ||
| Kundizzjonijiet tal-ħażna | - 40 ~ + 70 ° C / 20% ~ 95% RH | ||
| Provvista ta 'enerġija | DC 12V | ||
| Konsum tal-Enerġija (TBD) | AVG: 6W; Max: 11w | ||

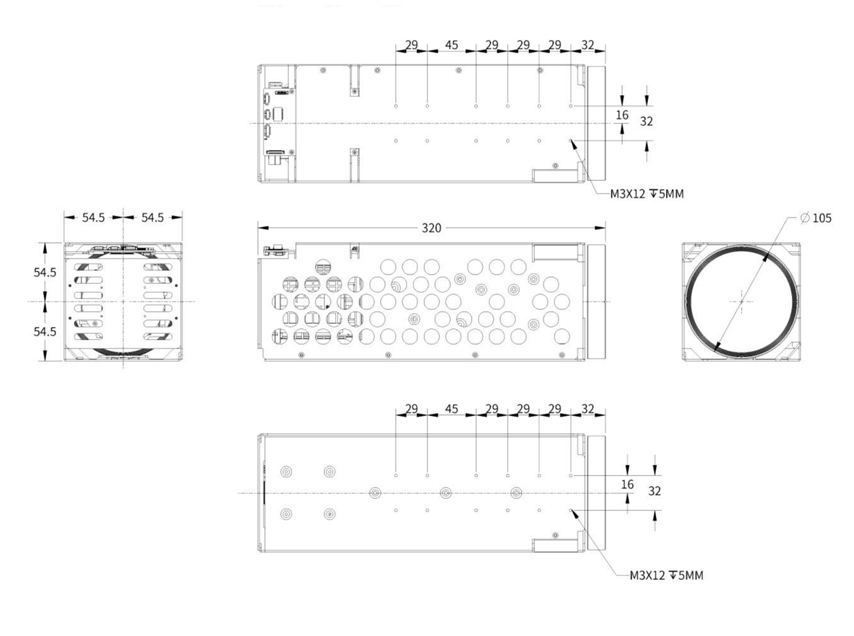

| Dimensjonijiet (L * W * H) | Appross. 320mm * 109mm * 109mm | ||
| Piż | 3.1kg | ||
Interface tan-netwerk
| Tip | Numru tal-brilli | Isem tal-brilli | Deskrizzjoni |
| Interfaċċa Ethernet J2_4pin | 1 | ETHRX - | Port Ethernet Adattiv, Internet Rx - |
| 2 | ETHRX + | Port Ethernet Adattiv, Internet RX + | |
| 3 | ETHTX - | Port Ethernet Adattiv, Internet TX - | |
| 4 | ETHTX + | Port Ethernet Adattiv, Internet TX + | |
| J3_6Pin Power & UART Interface | 1 | Dc_in | DC12V |
| 2 | Gnd | Gnd | |
| 3 | Rxd1 | Livell TTL 3.3V, Protokoll Pelco | |
| 4 | TXD1 | Livell TTL 3.3V, Protokoll Pelco | |
| 5 | Rxd0 | Livell TTL 3.3V, Protokoll Visca | |
| 6 | TXD0 | Livell TTL 3.3V, Protokoll Visca | |
| Interfaċċa awdjo J1_5pin | 1 | Audio_out | Awdjo barra (line out) |
| 2 | Gnd | Gnd | |
| 3 | Audio_in | Awdjo fi (linja ġewwa) | |
| 4 | Gnd | Gnd | |
| 5 | NC | NC |
Interfaċċa LVDS
| Port | Numru | Isem tal-brilli | Deskrizzjoni |
| Interface LVDS J4_30pin (simili għal Sony 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Gnd | Gnd | |
| 10 | Gnd | ||
| 11 | Gnd | ||
| 12 | Gnd | ||
| 13 | DC | Output DC (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | Livell TTL 3.3V, Protokoll Visca, l-istess għal TXD0 fuq il-port J3_6pin. Iżda ma tistax tikkonnettja fl-istess ħin. | |
| 19 | UART1_RX | Livell TTL 3.3V, Protokoll Visca, l-istess għal Rxd0 fuq il-port J3_6pin. Iżda ma tistax tikkonnettja fl-istess ħin. | |
| 20 | Gnd | Gnd | |
| 21 | Txout0 - | ||
| 22 | Txout0 + | ||
| 23 | Txout1 - | ||
| 24 | Txout1 + | ||
| 25 | Txout2 - | ||
| 26 | Txout2 + | ||
| 27 | Txoutclk - | ||
| 28 | Txoutclk + | ||
| 29 | Txout3 - | ||
| 30 | Txout3 + |
